Venue Specs

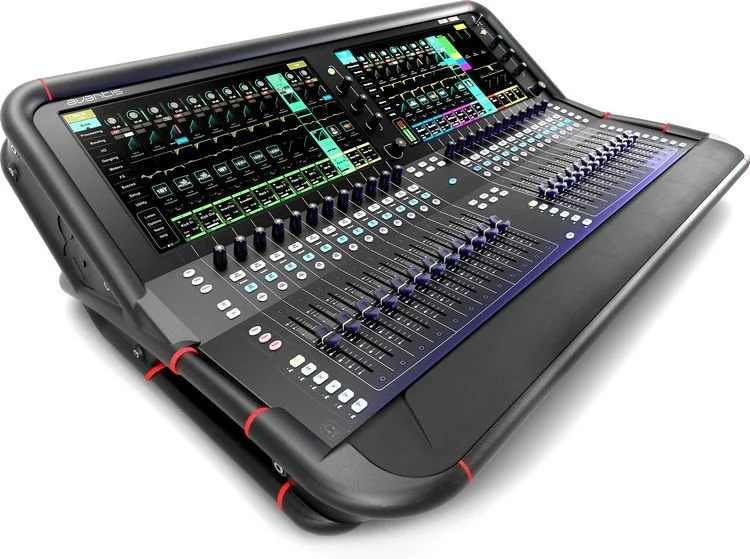

Avantis soundboard

  • 96kHz 64 channel / 42 bus digital mixer

  • XCVI FPGA core with ultra-low latency (0.7ms)

  • Fully configurable mix bus architecture

  • Super-tough, full metal chassis

  • Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows

  • dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp

  • 12 RackExtra FX slots with dedicated stereo returns

  • 16 DCAs

  • Dual 15.6” Full HD capacitive touchscreens with gesture control

  • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones

  • Fully assignable layout

  • 144 fader strips (24 faders, 6 layers) with optional dedicated master section

  • SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System

  • 12 analogue XLR Inputs / 12 analogue XLR Outputs

  • 1 Stereo AES In / 2 Stereo AES Out

  • 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE

  • User configurable rotary controls

  • 24 assignable SoftKeys

  • Comprehensive metering with multi-point peak detection

  • Internal storage for stereo playback and recording

  • USB stereo playback

  • BNC Word Clock

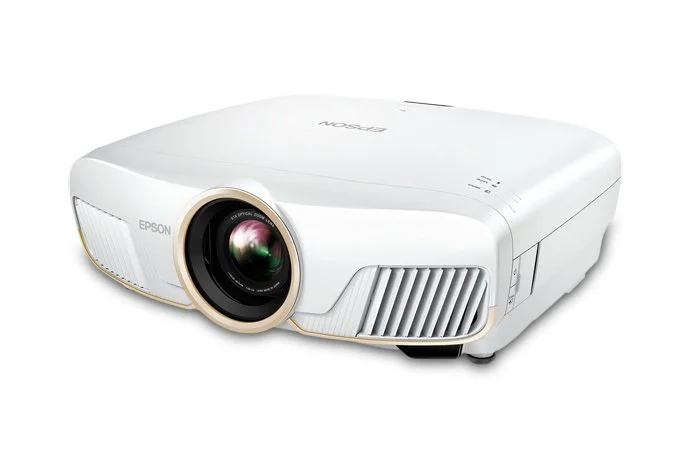

Epson 5050UB 4K PRO-UHD Projector

  • Hitachi Ultra Short Throw Motorized Lens

  • Dual lamp 8500 Lumen

  • 4k Resolution


  • CAT5e/6

  • HDR Processor – Full 10-bit HDR (2) color processing accepting 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance

  • Outstanding Brightness – Capable of displaying 4K content at an incredible 2,600 lumens for both color and white brightness (3). This not only provides for a wider performance envelope but allows for an exceptional HDR performance

  • Epson UltraBlack Technology – Epson created a Proprietary Compensation Filter designed to control the polarization of light itself. This allows Epson to suppress any stray light within the signal, producing an outstanding Dynamic Contrast ratio of 1,000,000:1


Visual

  • CINEFLEX VIEWING AREA:106H X 188 1/2W

  • PREMIER ELECTRIC SCREEN VIEWING AREA:74 1/2H X 157W

Audio

  • 2 Crown XTi 2002 Amps

  • 4 Crown XTi 1002 Ampw

  • 2 JBL - 1500W 12" two-way powered loudspeakers

  • DBX DriveRack PA2 Management System

  • 2 Shure - QLXD DIGITAL WIRELESS SM58

    VOCAL SYSTEM

  • 2 Episode® 300 Series In Ceiling Speaker w/ 8” Woofer

  • Episode® Digital Mini-Amplifier

  • 6 JBL Ultra Compact 2 Way loudspeakers

  • Denon DN-500Av Surround Sound Preamplifier

  • ART SLA-2 Amplifier 2 Ch 200W

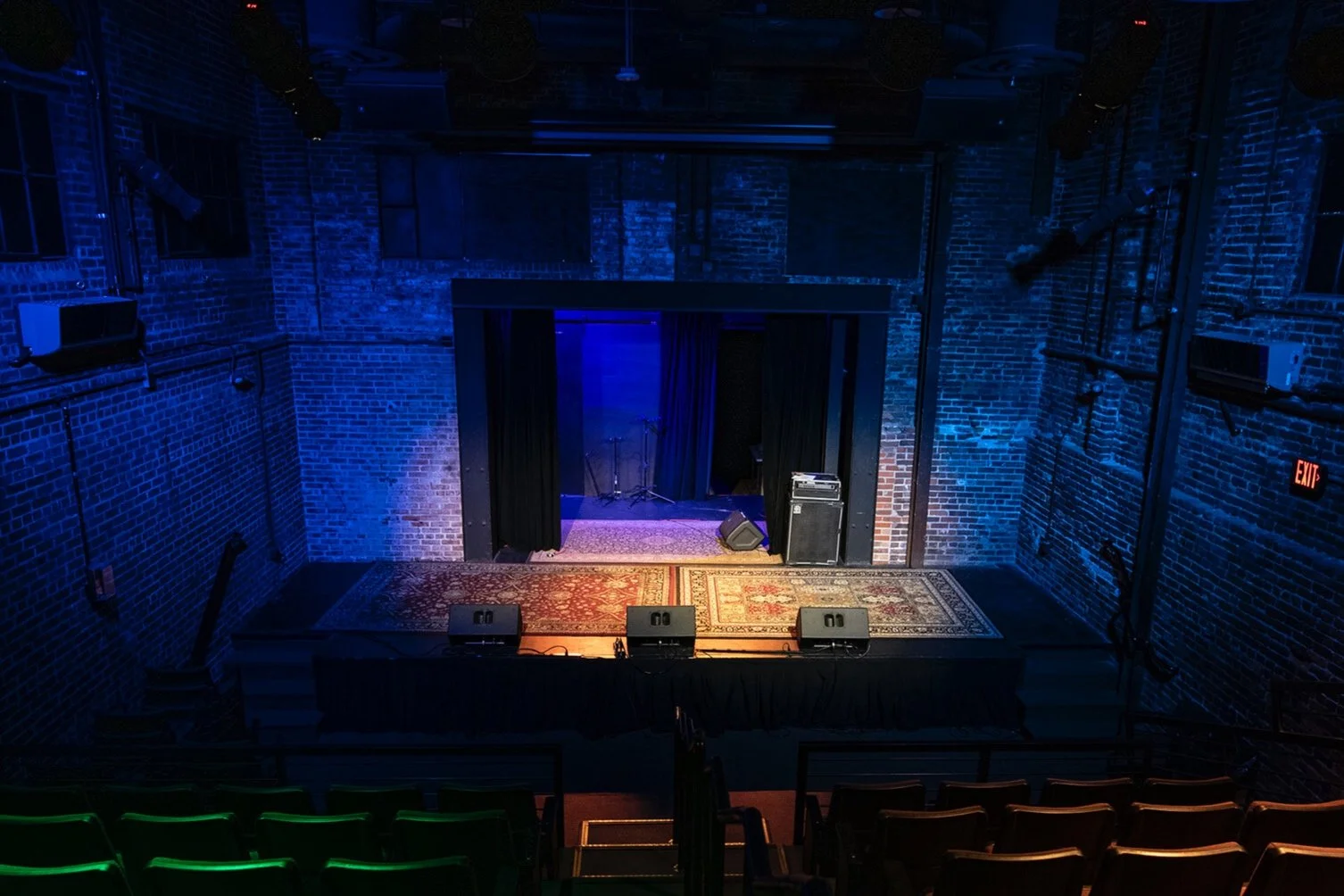

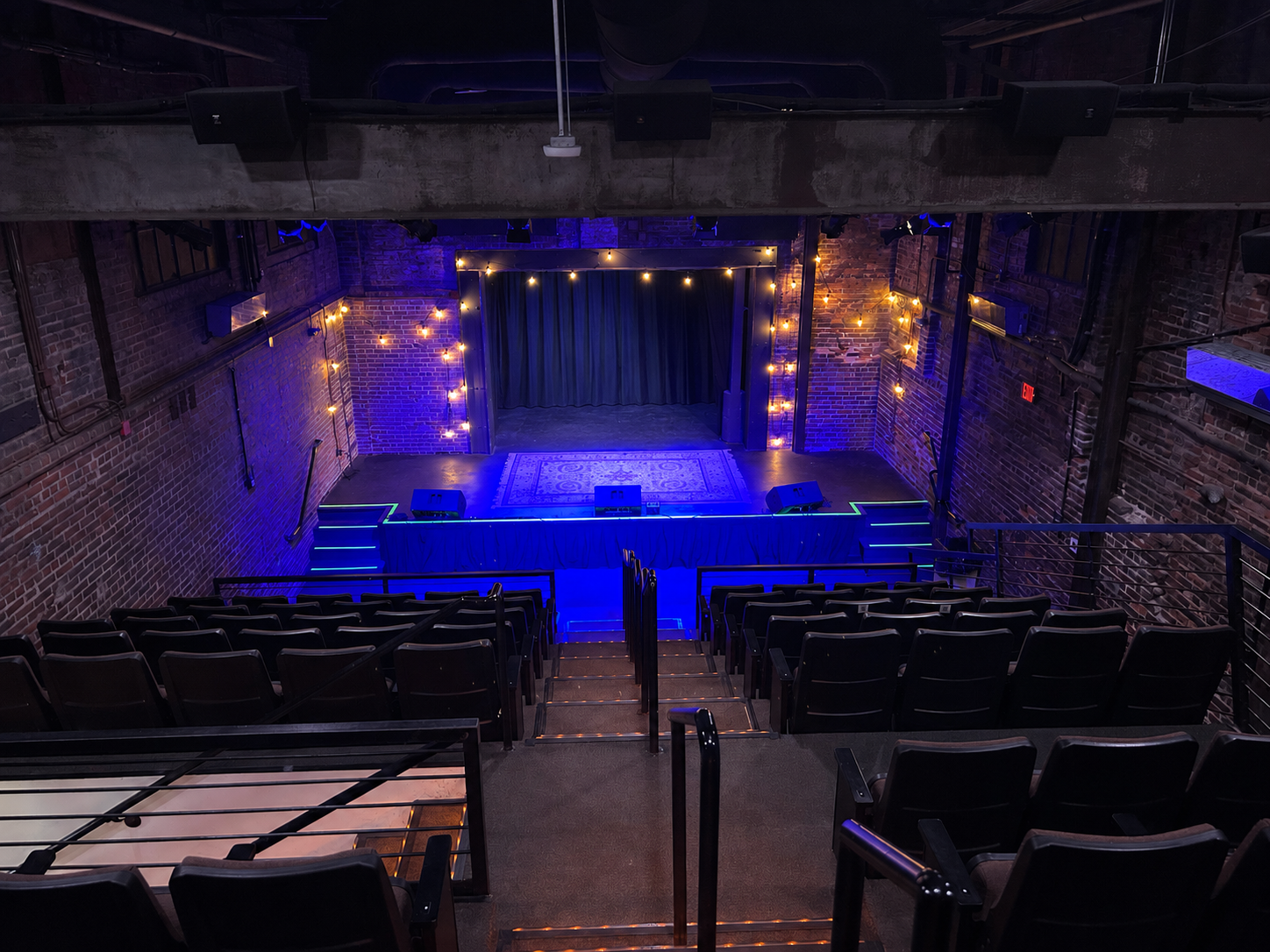

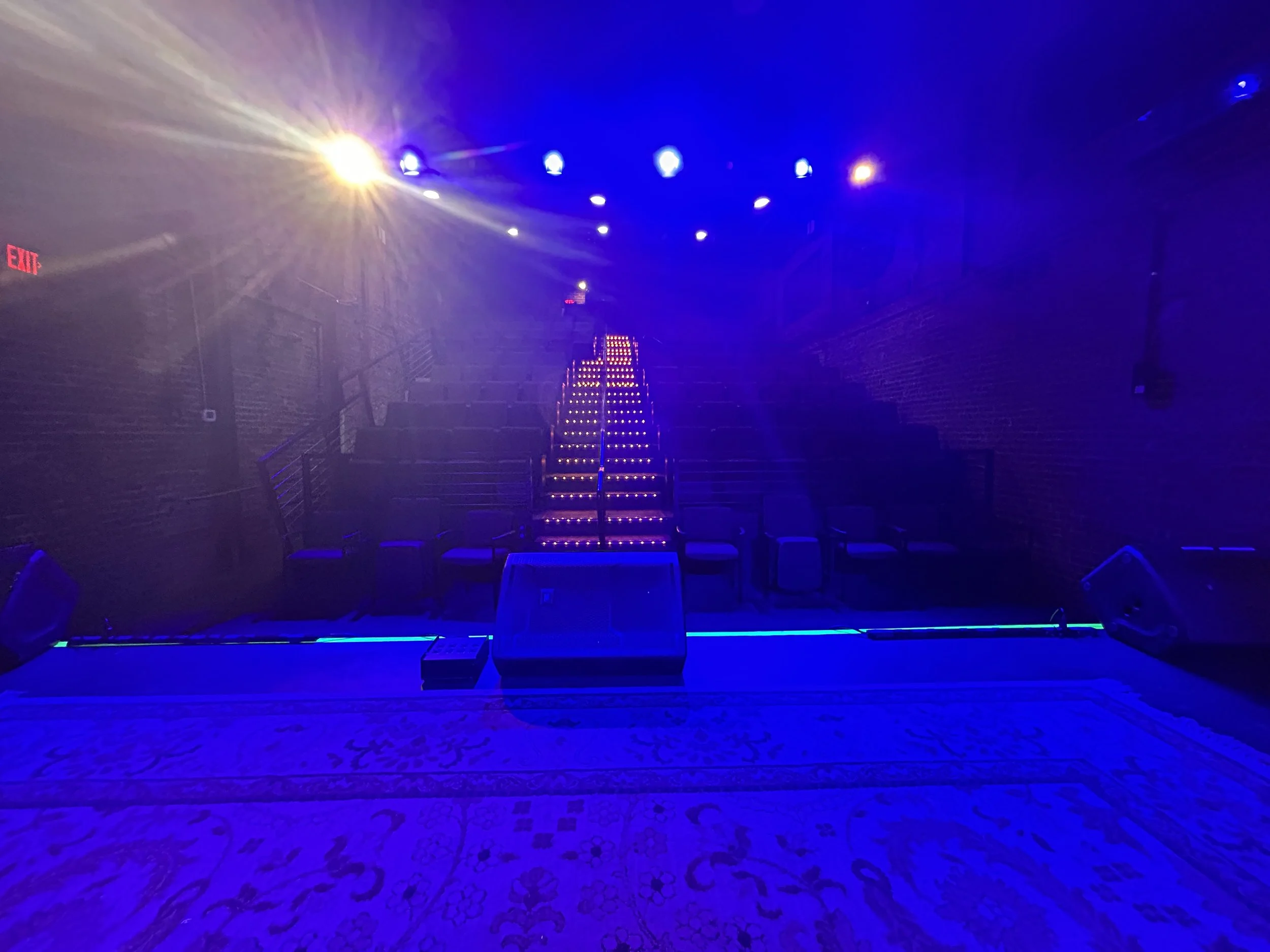

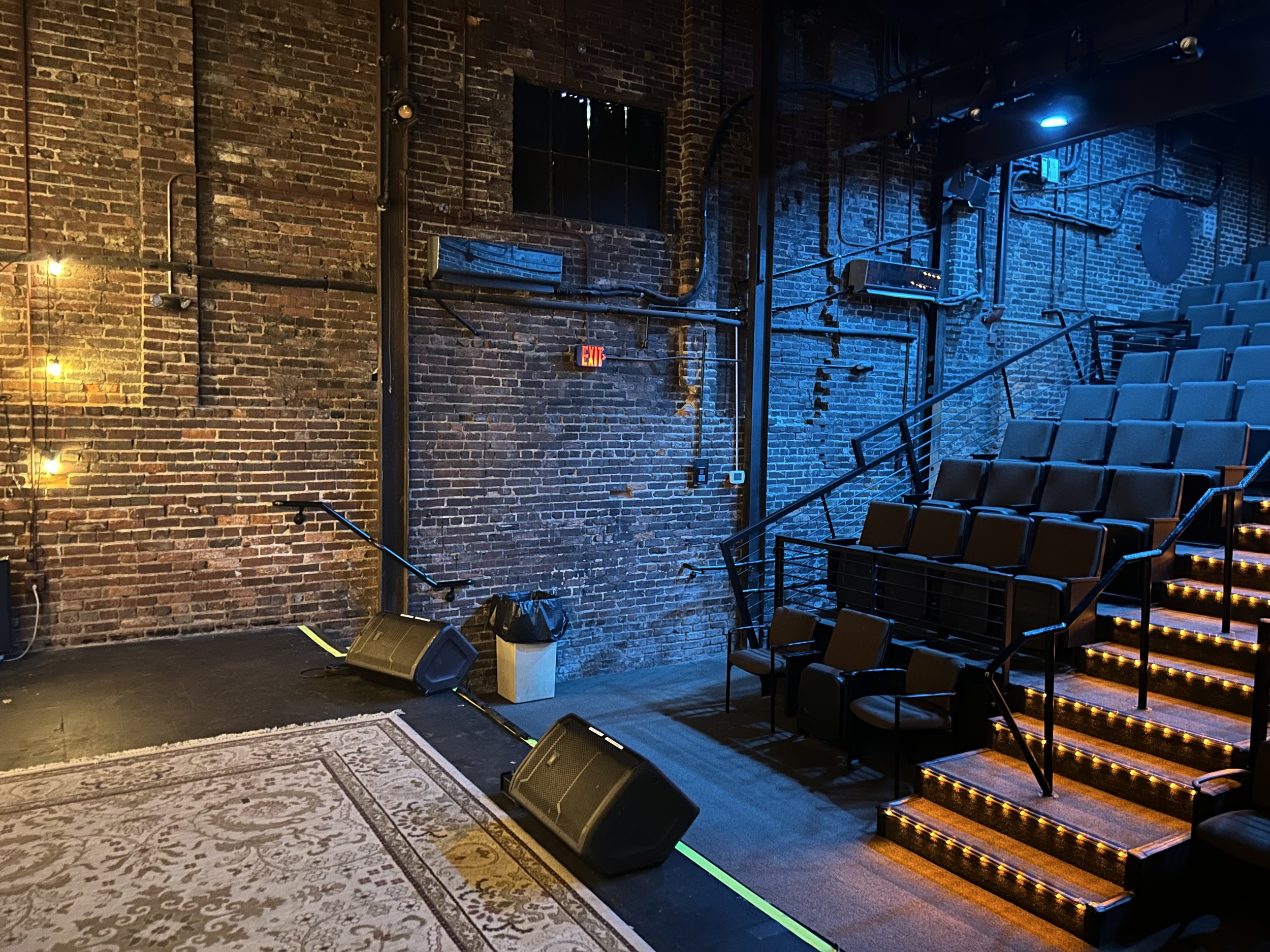

Our stage here at The Bird is 26 1/2’ wide, and 9 1/2’ deep on the wings. We have a drum pit that is roughly 13’ wide x 11’ deep.

Lighting

  • 6 Springtree 120W LED Ellipsoidal Spot Fixtures

  • 12 QuadColor Indoor Slim Par LEDs

  • 6 Slimpar 1812 Internal Colormix LEDs

  • Obsidian Control Systems Onyx (Nx-DMX)
